Melnor Turbo XT Oscillating Sprinkler Review: 4,000 Sq Ft Coverage With a Built-In Timer
Hands-on review of the Melnor Turbo XT oscillating sprinkler with mechanical timer — even coverage up to 4,000 sq ft, set-it-and-walk-away watering for lawns, overseeding, and garden beds.
🧰 Tools for this repair
Quick links to the gear I use on this job.
- Leveling Rake
Price:$59.99
Order now at - Turbo Oscillating Sprinkler
Price:$39.99
Order now at - Hose Quick Connectors
Price:$14.99
Order now at
Video Tutorial
Tools from this video
My Overseeding Tool List
7 products in this list
Quick overview
Steps at a glance
Estimated time: 20 min
- 1
Unbox and inspect the sprinkler
Check the sled sits flat, nozzles are clear, and the timer dial turns smoothly before you hook up the hose.
- 2
Set width and range for your lawn
Adjust the width and length controls so water lands on grass only — not the driveway, fence, or sidewalk.
- 3
Dial in the mechanical timer
Set run time up to two hours, open the spigot, and let the sprinkler shut off on its own when the dial runs out.
- 4
Match run time to the job
Use short, frequent cycles for new seed; longer single sessions for established turf during dry stretches.
Standing on the porch watching a sprinkler is not a hobby. If you are trying to keep a lawn alive — especially during overseeding or a dry stretch — you need even coverage and a way to shut the water off without sprinting to the spigot.
That is why I picked up the Melnor Turbo XT oscillating sprinkler with a built-in mechanical timer. It covers up to 4,000 square feet, lets you shape the spray pattern to your yard, and shuts itself off when the dial runs out. I filmed the full setup and demo on my YouTube channel — watch the embed above once the video is live.
In this guide, I’ll show you:
- What you get out of the box
- How the timer and coverage controls work
- Step-by-step setup for your first run
- Best settings for overseeding vs established grass
- How I pair it with quick-connect hoses
- Who this sprinkler is (and is not) for
What Is the Melnor Turbo XT?
The Melnor Turbo XT is an oscillating lawn sprinkler — the type that sweeps back and forth on a sled and throws a wide, flat sheet of water. This model adds two things most cheap oscillating heads skip:
- Turbo drive motor — Melnor’s Infinity Turbo Drive for smoother oscillation and less puddling in the center
- Built-in mechanical timer — set run time on the unit itself (up to about two hours) and walk away
Key specs at a glance:
| Feature | Detail |
|---|---|
| Coverage | Up to 4,000 sq ft (adjustable) |
| Timer | Mechanical dial — no batteries, no app |
| Pattern | Adjustable width and range/length |
| Drive | Infinity Turbo oscillating motor |
| Price | About $40 on Amazon (see tool page for current price) |
👉 Buy link & full specs: Turbo Oscillating Sprinkler
Why Oscillating Beats Pulsating for Most Home Lawns
Pulsating sprinklers shoot a heavy stream in a circle. They reach far and work fine on mature turf, but they can:
- Blast new grass seed into piles
- Cut bare patches into channels
- Overwater low spots while high areas stay dry
Oscillating sprinklers lay down a wide, low arc that looks more like steady rain across a rectangle. That is exactly what you want when:
- Overseeding or patching bare spots
- Watering new sod
- Keeping a side yard or garden bed evenly moist
- Letting kids run through without getting drilled by a hard stream (bonus)
The built-in timer is what turns this from “nice sprinkler” into set-it-and-forget-it gear for germination season.

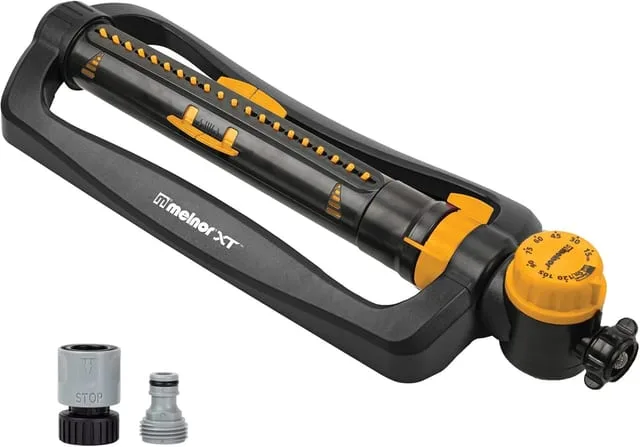

What’s in the Box
When you unbox the Melnor Turbo XT, you should see:
- The oscillating sprinkler head on a stable sled/base
- Width and range adjustment tabs (TwinTouch-style controls on this line)
- Mechanical timer dial integrated into the unit
- Hose connector — standard 3/4” garden thread
Before the first run:
- Sit the sled on level ground and confirm it does not rock
- Spin the timer dial — it should move smoothly with clear detents
- Look down the nozzle row — no packing debris blocking holes
- Thread the hose hand-tight plus about a quarter turn — no need for pliers on plastic fittings
Step-by-Step: First Setup and Test Run
Step 1 — Place it on level ground
A tilted sled throws water uphill and puddles downhill. I set mine on the flattest part of the lawn, usually near the center of the zone I want to hit.
Step 2 — Set width and range
This is the step most people skip, then wonder why the driveway is soaked.
- Width — narrow for side yards and strip beds; widen for open front lawns
- Range / length — shorten if you only need a patch near the sprinkler; extend for full-yard throws
Walk the pattern once on a short test run before you commit to a long cycle. I start with 5 minutes on the timer, watch where the water lands, then adjust.
Step 3 — Set the mechanical timer
Turn the dial to your desired run time — anywhere from a quick 10–15 minute germination pass up to about two hours for a deep soak on established turf.
Step 4 — Open the spigot and walk away
The timer controls how long water flows. When the dial runs out, the flow stops on its own. No phone. No Wi‑Fi password. No “did I leave the water on all night?” panic.
Coverage in the Real World: 4,000 Sq Ft
Melnor rates this model for up to 4,000 square feet. Real-world coverage depends on your water pressure, hose diameter, and how wide you set the pattern.
On my setup:
- One pass covers a large front section without moving the sled
- Wider back-yard areas need two placements with overlap — same idea as mowing stripes
- Narrow side yards are easy: collapse the width and you are not watering the fence and the neighbor’s driveway
The turbo drive matters here. Cheap oscillating heads sometimes stall or stutter, leaving dry stripes at the edges. Smoother oscillation means more even depth across the rectangle — less “lake in the middle, desert at the edges.”
Best Settings by Job
Overseeding and bare patches
When I overseed, I want light, frequent moisture — not one flood.
- Timer: 10–20 minutes per cycle
- Frequency: 2–3 times per day during germination (weather dependent)
- Pattern: Medium width so seed does not get blasted into piles
- Goal: Keep the top 1/4 inch of soil damp, not muddy
This sprinkler is the one I link from my overseeding product list for exactly that reason.
Established lawn in summer
- Timer: 30–60+ minutes depending on heat and soil
- Pattern: Full width and range for deep, even coverage
- Tip: Split huge yards into two zones rather than one marathon run that overwaters low spots
Garden beds and side strips
- Timer: 15–25 minutes
- Pattern: Narrow width, shorter range
- Goal: Hit the bed without watering pavement
Hose Setup I Pair With It
During overseeding I might swap between sprinkler, hand wand, and spot nozzle multiple times a day. Threading fittings every swap gets old fast.
I keep Hose Quick Connectors on:
- The hose end at the spigot
- The sprinkler inlet
- My hand wand
Changeovers take seconds. Full write-up: Hose Quick Connect Setup
Tools I Use Alongside This Sprinkler
Turbo Oscillating Sprinkler
The Melnor Turbo XT with built-in timer — my go-to for 4,000 sq ft coverage and hands-free shutoff.
👉 See my Turbo Oscillating Sprinkler pick
Hose Quick Connectors
Swap sprinklers without wrenches — critical during germination when you water morning, midday, and evening.
👉 See my Hose Quick Connectors pick
Broadcast Spreader
If you are overseeding, even seed application comes first — then consistent watering with this sprinkler.
👉 See my Broadcast Spreader pick
Maintenance and End-of-Season Storage
Oscillating sprinklers die early when sediment and hard-water crust build up in the nozzle row.
During the season:
- Flush the tube if flow looks uneven
- Wipe nozzles if you see hard-water scale
- Do not drag the sled across concrete — micro-cracks in the base lead to wobble
End of season:
- Disconnect, drain, and store flat in the garage
- Keep it off the floor if your shop leaks — flat storage prevents sled warp
Melnor backs the turbo line with a limited lifetime warranty — worth registering if your model includes that.
Who Should Buy This (and Who Should Skip It)
Buy it if you:
- Want even rectangular coverage without babysitting the hose
- Are overseeding, patching bare spots, or keeping new seed moist
- Prefer a simple mechanical timer over apps and hubs
- Need up to ~4,000 sq ft per placement
Skip it if you:
- Need circular throw to the far corner of a huge lot — a pulsating head may reach farther in one spot
- Already run a full in-ground irrigation system
- Need sub-freezing automatic drain — this is a hose-end tool you store for winter
DIY Veteran Tips
- Overlap passes on wide lawns — treat it like mowing stripes
- Test on pavement first if you are unsure of the pattern — then move to grass
- Morning watering reduces evaporation vs mid-day sun
- Match timer to soil — sandy soil needs shorter, more frequent runs; clay holds water longer
- Watch low spots — even the best oscillating head will puddle if the grade dips
Final Thoughts
The Melnor Turbo XT oscillating sprinkler with timer is one of the best bang-for-buck lawn tools I have added for overseeding season and everyday watering. You get wide, even coverage up to 4,000 sq ft, adjustable width and range, and a mechanical timer that lets you set run time and leave.
Watch my full demo in the video above, then grab the same model on the Turbo Oscillating Sprinkler page — affiliate link, same as always, no fluff.
If you are building a full overseeding setup, check my overseeding guide and the Overseeding product list for the rest of the gear I use on camera.
